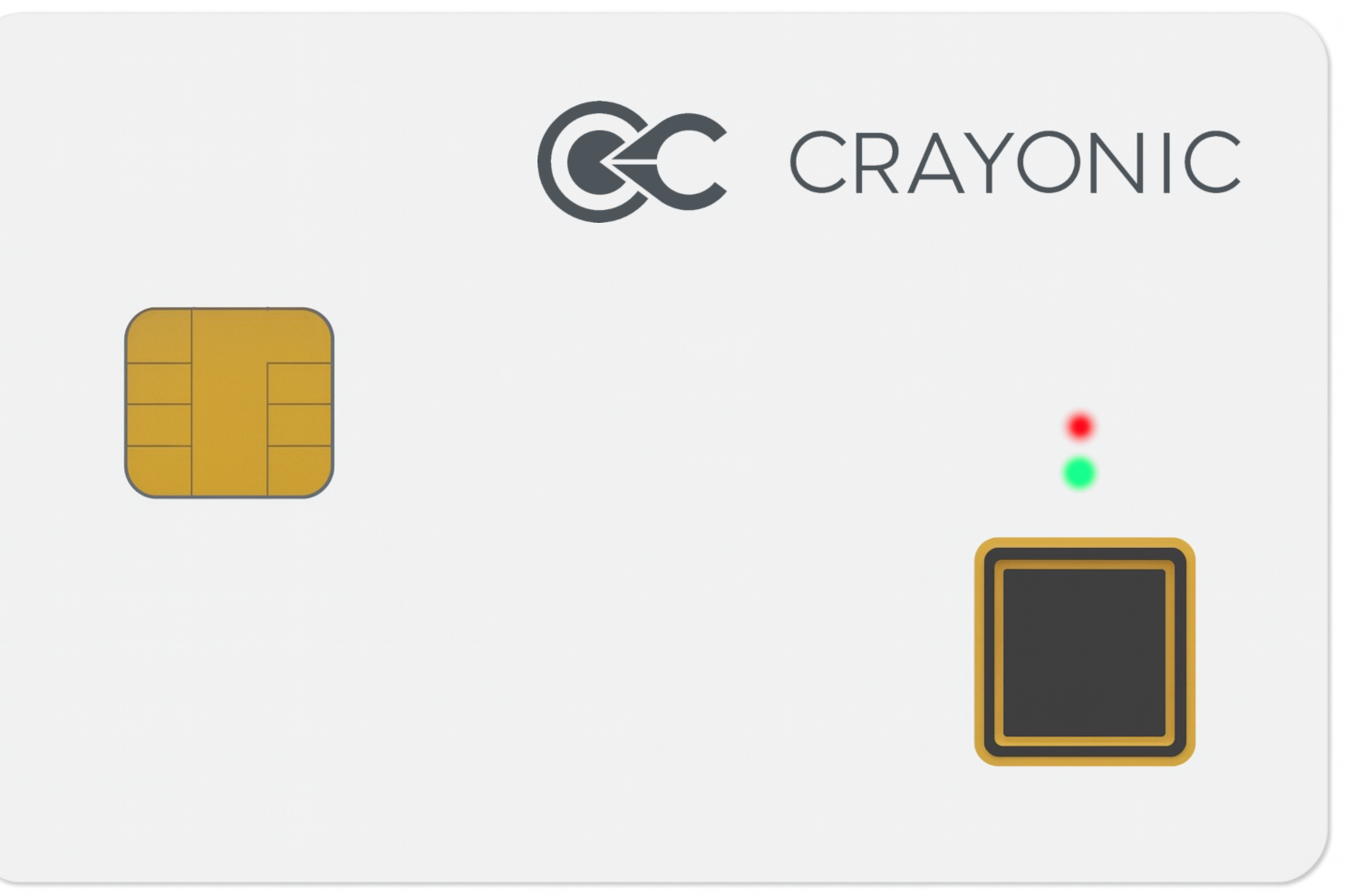

Crayonic BioCard
The Crayonic BioCard is the most cost-effective biometric authentication wallet offered by Crayonic: a credit-card sized FIDO2 security key with on-card fingerprint matching. It is currently certified for FIDO2 passkeys and FIDO U2F credentials. Upcoming support will include PIV-compatible X.509 credentials and OTP codes*.
Where this fits
The BioCard is the card form factor among the Crayonic wallets - it carries FIDO2 credentials like the Badge and KeyVault but has no display, battery or Bluetooth; see Solution Architecture.
The card features a Common Criteria EAL 6+ certified secure element with on-card biometric matching. The card supports both contactless (NFC) and contact (CCID) communication.
Crayonic BioCard specifications
| Item | Description |
|---|---|
| Interface | Contact ISO/IEC 7816 / Contactless ISO/IEC 14443 |
| Dimension | 85.6(W)mm x 54(H)mm x 0.84(T)mm |
| Operating Temperature | -10℃ ~ 50℃ |
| Biometric FRR/FAR | MasterCard / VISA Compliant |
| Biometrics | Up to 2 Fingerprints with sub-second match |
| OS | Java Card version 3.0.4 , Global Platform version 2.2.1 |
| Credentials | FIDO2, PIV/PGP (Optional RFID) |
| User Feedback | Red & Green LED |
* Planned functionality; contact Crayonic for availability.
